Kangu bicycle repair station 18.004.2
Urban furniture with style
        |
Downloads
publicity folderProduct Card
KANGU station 18.004
Basic version of the station equipped with a bike holder and tool kit, as well as a manual bicycle pump.
KANGU station 18.004.1
A version of the repair station with an additional bike rack.
KANGU station 18.004.2
Station for independent, ad-hoc bicycle repair and maintenance, equipped with a tool kit, a bicycle suspension bracket and a floor pump with a pressure gauge.
KANGU station 18.004.3
The station for independent, ad-hoc bicycle repair and maintenance is equipped with a bicycle suspension bracket, a rear bicycle stand, a side floor pump with pressure gauge and a tool kit.
KANGU 18.104bicycle inflator
The pump is a stand-alone floor-mounted product. It is equipped with a pressure gauge and a head that fits Presta and Schrader valves.
KANGU 18.004.4station
Model 18.004.4 is a bicycle station designed for washing unicycles. It is equipped with a low-pressure washer, a tap with a timer and a set of brushes.
KANGU station 18.004.5
Station 18.004.5 is a combination of a repair and washing station for bicycles. It is equipped with both a tool kit and a hand pump, as well as a brush set and a low-pressure washer. In addition, the station has a rack for two bicycles.
KANGU 05.004bicycle stand
The stand completes the line of KANGU bicycle stations. It features a distinctive cyclist motif cut out at the base of the stand and each station.
KANGU series products
A collective representation of all the bicycle stations and dadakts in the KANGU series.
Realizations
We can customize each station by adding a logo and painting it in the color of your choice. For painted stations, the logo can be cut into the metal structure or glued on. For stations made entirely of stainless steel, the logo can be cut out, etched in black on the surface of the steel, or pasted.
Model description

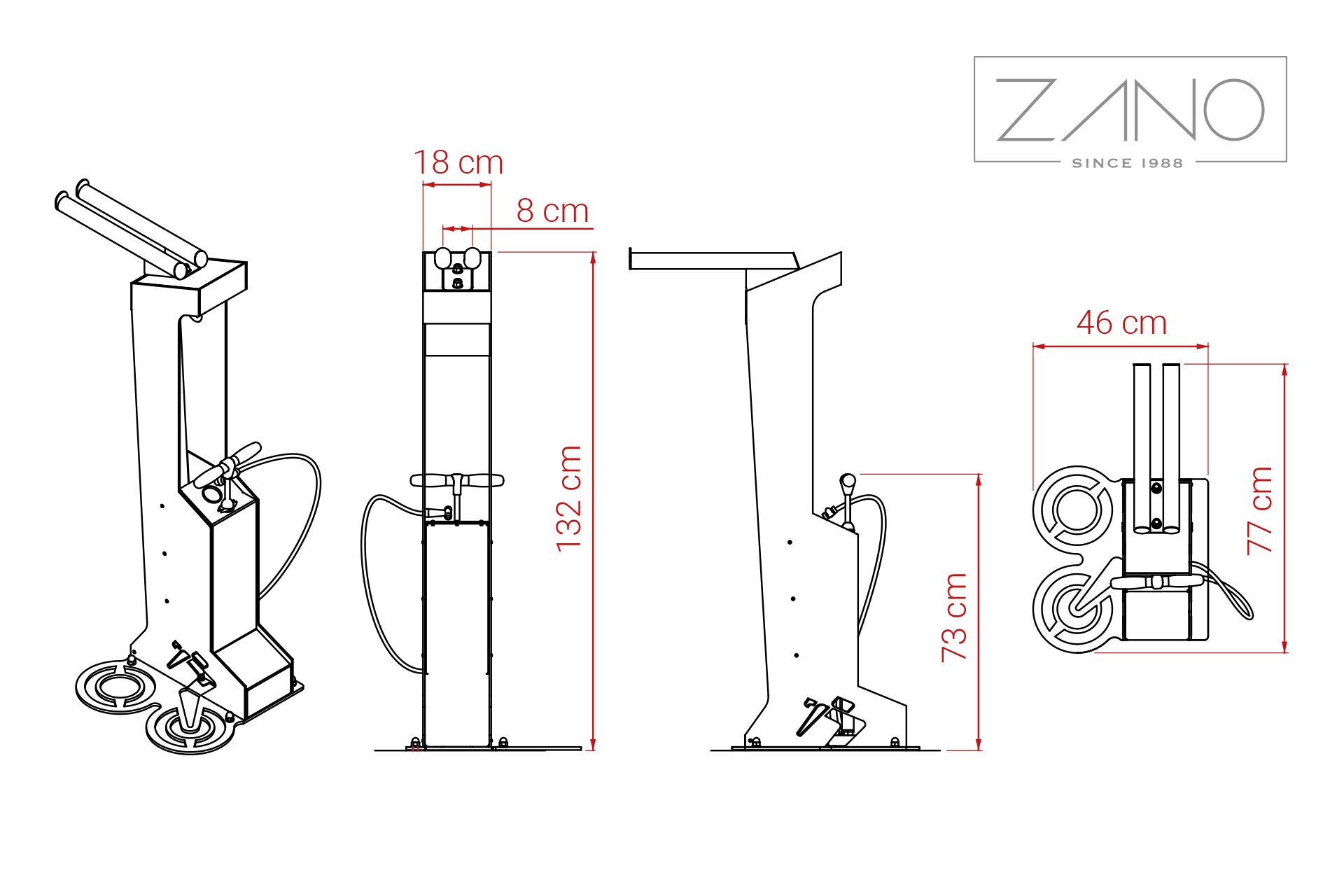

Self-service repair station for bicycles KANGU, is designed for ad hoc repair and adjustment of bicycles by the user himself using the station structure as a base and tools included in the equipment.
Model 18.004.2 is characterized by a built-in floor pump with a pressure gauge.
The welded structure made of 5 mm thick steel sheets ensures the stability and strength of the product.
KANGU can be made in two variants:
● from carbon steel s235Jr galvanized and powder-coated in a color from the customer's specified RAL palette with stainless steel elements
● or entirely made of stainless steel 1.4301 polished.
Station equipment:
● handle made of two stainless steel pipes diameter 42 x 2.6 mm, length 450 mm to suspend the bicycle.
● tools, attached to stainless steel cables (8 mm in diameter) in PVC lagging. They are attached to the cables with steel swivels to prevent tools from tangling.
Tools included:
● floor pump with pressure gauge; compatible with Presta and Schreder valves
● screwdriver; stainless steel Phillips and flathead
● wrenches; stainless steel; 13, 14, 15, 16 mm
● allen wrenches; stainless steel; 2, 2.5, 3, 4, 5, 6, 8 mm
● chain reducer; 9, 10, 11 speed (supports Shimano 11 speed SPD, does not support Campagnolo 11 speed chains!); made of stainless steel
● spoke (nipple) wrench; Mavic MTB, 3.22, 3.45 and CNSPOKE wrench (3.2-3.3-3.4 mm) in stainless steel
● T10, T25, T30 star wrench; in stainless steel
● 8 mm disc brake wedge + bottle opener; in stainless steel
● tire spoons; suitable for removing tubeless tires and wire tires in high-strength plastic
The Kangu Station should be fixed permanently to the ground with dowels.
The Kangu Station can be personalized by cutting a logo, customer's company name into the station structure.
